Manufacturer customized 11.1V42A lithium battery pack medical
device battery pack
How long can the medical device battery pack last?
Medical device battery packs will last for 2 to 4 years, depending
on storage, usage conditions and capacity. If you use the battery
pack more or store it improperly, the battery life will be
shortened.
How many times can the battery pack be charged?
The battery pack can go through 300 to 500 charging cycles before
it starts to lose battery capacity.
1 Product Configuration
| No. | Item | Criteria | Remark |
| 1 | Lithium-ion Battery Cell | Li-18650 | |
| 2 | PCM | PCM | |
| 3 | Connector | / | |
2 Product Dimension and standard
| Specification | 11.1V/12.6V |
| Inner size | / |
| Cells | 36PCS 18650 |
3 Product Specification
| No. | content | Testing method | Remark |
| 1 | Charge cut-off voltage | 12.6V | |
| 2 | Discharge cut-off voltage | 8.25V | |
| 3 | Standard charge | Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge
the battery at constant current of 0.2C to reach 12V. Then charge
the battery at constant 12.6 voltage until the charging current
decreasing to 0.02C. | |
| 4 | Standard discharge | After the standard charging , rest for 1 hour then discharge to 8.25V@0.2C. | |
| 5 | Shipments voltage | 11.1V-12.6V | ≤30 % |
| 6 | Maximum Charge Current | 3A | |
| 7 | Maximum continuous working current | ≤20A | |
| 8 | Rated capacity | Typical capacity:42Ah or customized Minimum capacity:41.5Ah-5% or customized | standard discharge after standard charge |
| 9 | Operation temperature range | 10~45℃ | 60±25%R.H |
| -20~60℃ |
| 10 | Storage temperature | ≤1 month: -20 ~ 45℃ | 60±25%R.H Best 10~25℃ for long-time storage |
| ≤3 months: -10 ~ 30℃ |
| ≤1 year: 0 ~ 30℃ |
| 11 | Impedance | Subject to sample | |
| 12 | Weight | / | |
4 PCM
| Item | Content | Criterion |
| Over charge Protection | Over charge detection voltage | 4.250±0.050V |
| Detection delay time | 1.0±0.3S |
| Over charge release voltage | 4.150±0.050V |
| Over discharge protection | Over discharge detection voltage | 2.700±0.080V |
| Detection delay time | 1.0±0.3S |
| Over discharge release voltage | 3.000±0.100V |
| Rated operational current | ≤20A |
| Over current protection | Primary over current detection current | 50±5A |
| Primary detection delay time | 800mS-1200mS |
| Secondary over current detection curren | 100±10A |
| Secondary detection delay time | 50mS-200mS |
| Short protection | Detection condition | ＞200A, 200uS-300uS |
| Protection | yes Exist |
| Protective release condition | Disconnect short circuit |
| Charging management | Charging overvoltage protection voltage | 55.6±0.4V |
| Rated charging current | 3A |
| Software overcharges | 4±0.2A |
| Detection delay time | 300mS-600mS |
| Temperature protection | Charging high temperature protection temperature | 50±4℃ |
| Charging protection recovery temperature | 47±4℃ |
| Discharge high temperature protection temperature | 70±4℃ |
| Discharge protection recovery temperature | 55±4℃ |
| Low temperature protect temperature of charging | 0±4℃ |
| Low temperature recovery temperature of charging | 5±4℃ |
| Interior resistance | Main loop electrify resistance | ≤60mΩ |
| The static current | Since the power consumption | ≤60.0uA |
| NTC | YES Exist | 10K±1% B3435±1% |
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.

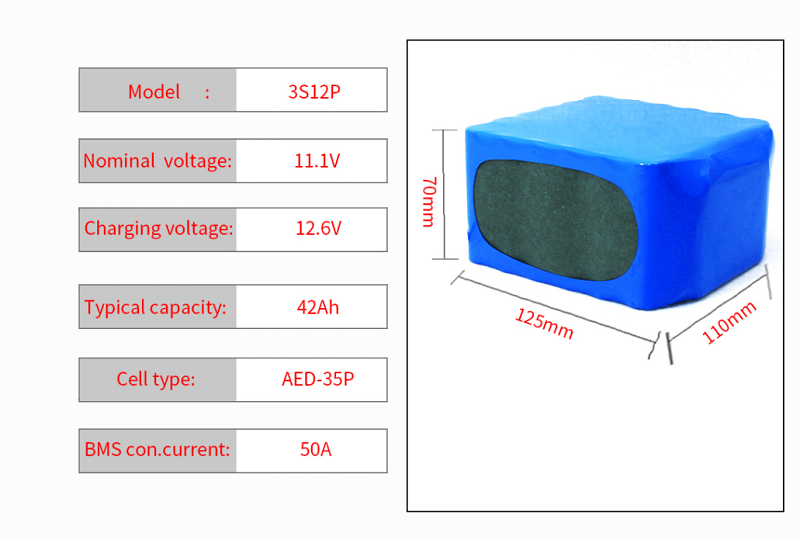

product photo:
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand logo in products, bags,
labels or anywhere. Or you need to develop battery packs according
to your product orientation. Our OEM and ODM services are ready to
do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
