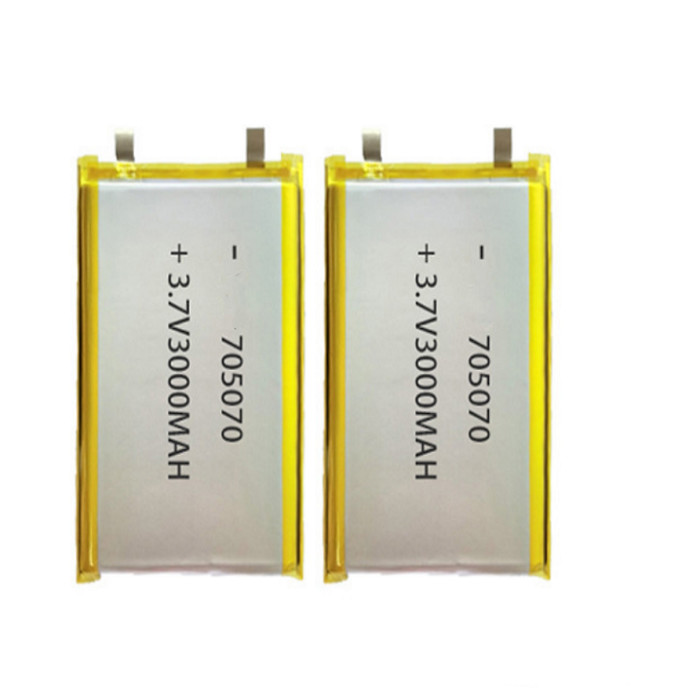

Lithium polymer battery 705070 3.7V 3000mAh Hand warmer locator,
warm clothes, power bank
The model battery can be replaced for:
Bluetooth speaker, electronic business card batteries, cleansing instrument batteries, ordering machine batteries,
trackers batteries, portable small appliances batteries, Power tools batteries, metal
detectors batteries, air conditioner, Smart bracelet batteries, learning machine tablet batteries, card speaker batteries, mobile
phone millet display PSP built-in battery batteries, Bluetooth speaker, power tools, power storage, air purifiers batteries, projectors batteries, breast pumps batteries, Bluetooth headphones batteries, etc.
1. This specification defines the performance of rechargeable
polymer lithium batteries. The types, performance, technical
characteristics, warnings and precautions of the Guanyu-FF-152
battery pack produced by Shenzhen Guanyu New Energy Technology Co.,
Ltd. are introduced.
2. Specification
| NO | Items | Description |
| Normal specification |
| 1 | Nominal Voltage | 3.7V |
| 2 | Normal Capacity | 3000mAh |
| 3 | Internal Resistance | ≤50mΩ |
| Standard Charge |
| 4 | Battery operation temperature range @charging | -20~50°C |
| 5 | Normal charge voltage | 4.2±0.1V |
| 6 | Recommended float charge voltage(for Standby use) | 3.8±0.1V |
| 7 | Allowed MAX charge current | 800mAh@Battery initial Temp 25±5℃ |
| 8 | Recommended charge current | ≤500mAh |
| Standard discharge |
| 9 | Battery operation temperature range @discharging | -20~ 50℃ |
| 10 | Output Voltage Range | 2.8~4.2V |
| 11 | Allowed discharge current | 1500mAh withstand 30min @Battery initial Temp 25±5℃ |
| 12 | Pulse discharge current | 3000mAh withstand 3s |
| 13 | Discharge Cut-off voltage | 3.7V |
| Mechanical Characteristics |
| 14 | Dimension | Length 70mm |
| Width 50mm |
| Height 7mm |
| 15 | Weight | Approx. 250g |
| Storage |
| 16 | Storage Temperature & Humidity Range | Short: within one month | -20~35℃, 45~75%RH |
| Long term: above one month | -10~30℃, 45~75%RH |
| 17 | Self-discharge rate | Residual capacity | ≤3% per month; ≤15% per year |
| Reversible capacity | ≤1.5%per month; ≤8% per year |
3. Electrical Characteristics & Test Condition
Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.
| NO | Items | Criterion | Condition |
| 1 | Internal Impedance | ≤50mΩ | Test the internal resistance of 50% SOC battery pack with 1 kHz AC
internal resistance test instrument. |
| 2 | Capacity | ≥3000mAh | Rest for 1 hour after fully charged, then discharge with 0.33C
current until the battery reaches the discharge cutoff voltage.
Repeat above process for three times, if the discharge time is not
less than 180 minutes, you can stop and define the Discharging
current*time value (Ah) as battery capacity. |
| 3 |
Short circuit protection | Automatically cutoff discharging when short circuit, and release
after remove the lead. | Connect the positive and negative of this battery pack through a
lead with the resistance less than 5mΩ. |
| 4 | MAX charge Current | 800mAh | Charging with this current for more than 0.5h and the added
temperature of battery pack less than 20℃. |
| 5 | MAX discharge Current | 3000mAh/3s | Discharging with this current for more than 0.5h and the added
temperature of battery pack less than 35℃. |
| 6 |
Cycle life (DOD%100) | ≥800cycle | Discharge with the current of 0.5C until it can’t discharge, and
then rest it for 1h. Charge the battery following
CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h.
Repeat above process until full charged capacity is no more than
80% of normal value. Accumulated times is defined as cycle life. |
| 7 |
Discharge Temperature Characteristics | -20℃ | ≥70% | At 25±5℃ discharge the battery with the current of 0.33C to the
cut-off voltage. Store the battery at various temperatures for 2h
and discharge the battery with 0.33C to the cut-off voltage. Record
the ratio between discharging & charging capacity. |
| 0℃ | ≥80% |
| 25℃ | 100% |
| 55℃ | ≥95% |
| 8 | Charge Retention ability | remain capacity≥90% | Charge the battery to full capacity and store it for 28days, and
then discharge it with 0.33C to the cut-off voltage. |
4. Dimensional Drawing
,
5.Storage & Transportation
* Based on the character of cell, proper environment for
transportation of LiFePO4 battery pack need to be created to
protect the battery.
* Battery should be stayed in the ware house -20℃～35℃ where it’s
dry, clean, shade, and well-ventilated.
* The battery should be stored in 50% SOC during transportation.
* The battery need to be charged every 6 months if out of use
* Keep the battery against dropping, turning over and serious
stacking during loading.
6. Warning & Tips
Before using the battery, please read and observe the
specifications and precautions on the battery surface. Improper use
may cause the battery to heat up, catch fire, crack, damage or
decrease its capacity. Shenzhen Guanyu New Energy Technology Co.,
Ltd. is not responsible for any accidents caused by non-compliance
Tag:
